2014年6月22日 星期日

2014春季懷德居成果展

學習木工一個學期課程結束了,在懷德居內部有辦一個成果展,呈現同學們的作品。
細節的部分就不多說了,留下照片當作紀念吧。

心得:別人做的都比較好!








2014年6月15日 星期日

木工作品(4):時光 NLight No.3



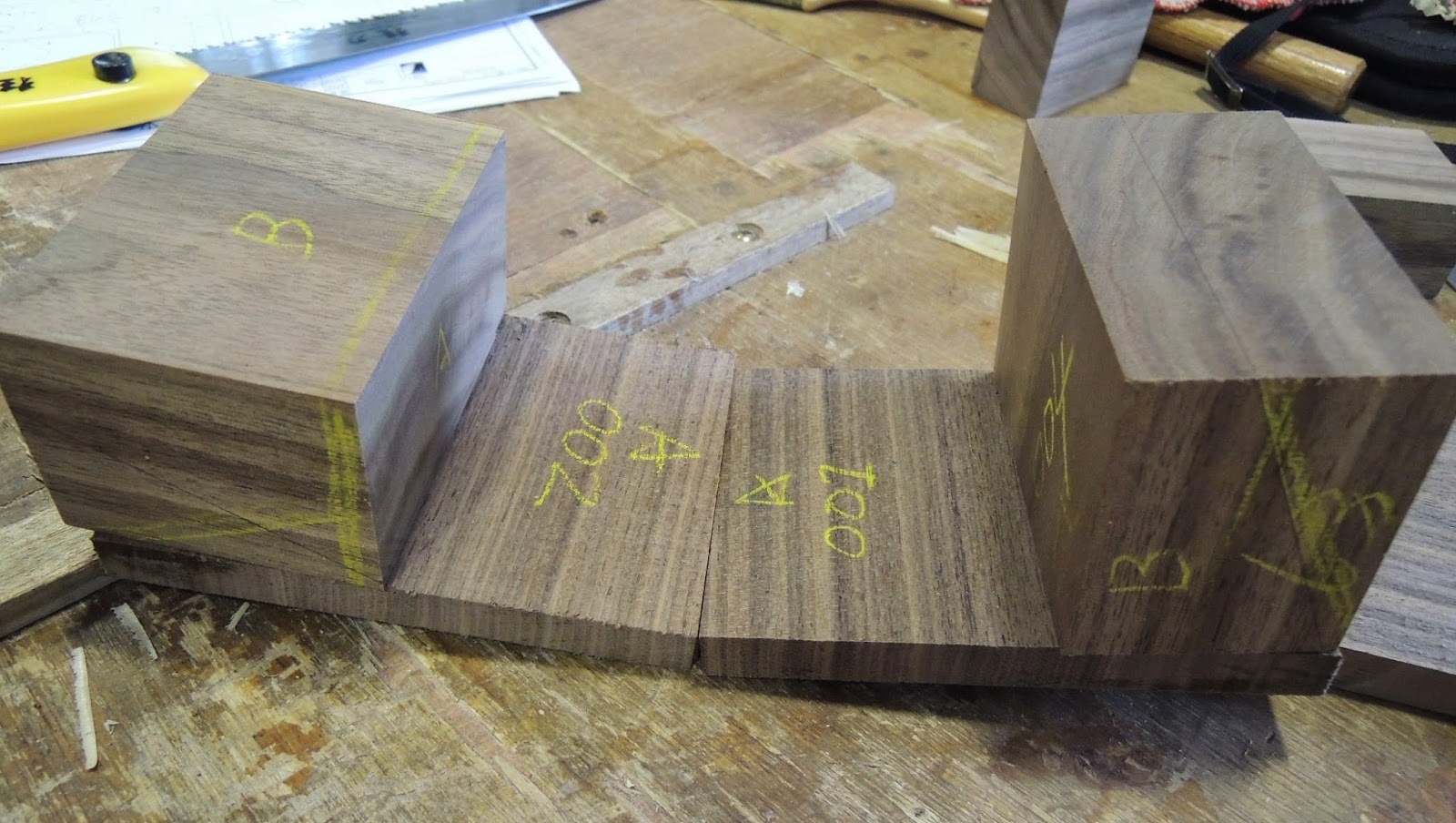

光如同時間一般地流動
流向重力的一方

當夜燈靜躺
光將消逝在寧靜之中





2014年6月2日 星期一

木工作品(2):月夜燈 NLight No.1


今年預計的Project就是把所學到的木工,結合本身機械、電子的專業,去設計一些木製產品。經過一些考量 (方便來回林口攜帶、由簡入繁、可不斷變化) 我決定今年以一系列的夜燈開發當作Project。先從臨摩別人的作品開始,然後逐漸加入自己的點子。希望接下來每個月至少可以設計&製作一個夜燈,變成一系列 NLight (Night Light)。

The project in this year is expected to combine carpentry learned recently and own machinery & electronics expertise to design some wood products. To think some considerations (easy to carried and develop) I decided to develop a series of nightlights as Project in this year. Start from imitating others' work, and then gradually add my ideas. I hope I can design & produce one nightlights per month at least, to be a series of NLight (Night Light).




Concept
這個月首先登場的是NLight-Moon。以月圓當作概念。
利用淺白色的楓木,配合黃色的LED條燈,做出中秋月圓的意象。
First product in this month is NLight-Moon. Using full moon as a concept,
basing white maple, with yellow LED lights, displaying the Mid-Autumn moon imagery.

BOM
Item Part Name Qty
1 楓木maple 160X130X25 mm 1
2 楓木maple 160X130X15 mm 1
3 楓木maple 160X130X08 mm 1
4 Yellow LED light strip 300 mm 1
5 線上開關 Switch 1
6 電源供應 AC110V to DC 12V (1A) 1
7 木工膠 Glue 1

作法
1. 首先在CAD裡先設計與確認設計的尺寸。
2. 備料,把所需的楓木尺寸裁切出來,總共三塊。


3. 其中有兩塊要切出圓來,先用壓克力線鋸 鋸出圓來,再用鑿刀修整圓。


4. 膠合三片,並利用虎前與C型夾固定住。
5. 等待木工膠乾著之後,用鉋刀削平外觀,並用砂紙打磨,最後上保護木蠟油。


6. 先鑽要給電線跑的孔,使電線穿過到內側,並焊接LED燈條 (30cm 12V 5W)
7. 安裝線上開關,以控制燈啟動與否。記得LED電極有方向性,小心不要接錯。


8. 完成接線,試點燈。

Step
  1. Designed and checked the dimensions in CAD.
  2. Prepared materiel, cut the required size of maple, including three prats.
  3. Two parts have to be cut out circles hole, using acrylic wire sawing to cut firstly, then trimmed around the circle by chisel.
  4. Glued three pieces together, and used C-clamps to fix.
  5. After glue dried, flattening appearance by plane iron and sand paper, and finally applied wood wax as protection.
  6. Drilled holes for installing wires and welded to LED strip (30cm 12V 5W)
  7. Installed a line switch to control ON/OFF. Remember LED's electrode has direction.

檢討:
1. 備料是一個學問,通常由最小的尺寸開始裁切起,並考量餘料是否能安全裁切等等。
2. LED燈不夠深入,從外觀很容易看得出來,光線也因此不夠均勻。
3. 線上開關離燈超過30cm,不利使用者操作。
4. 因為LED還是會發熱,以至中間那一片,某些薄肉處會因熱變形,使表面鼓起不平。
5. 組合三片木頭,但花紋沒有對齊,十分可惜。
