Tear down: Inkjet printer (HP DJ F4280) (part I)

Before CNY, I cleaned out some stuff from my room. One is worth to tear down to study, printer. Honest to say, I hate HP printer because its ink is too expansive. This printer hasn't printed over 1,000 sheets probably. So my brother and I decided to throw it away to clean space.
But before throw it away, I think we could tear down it and see what look like inside.


The name of this printer is HP DJ F4280, I guess it is the cost down version of consumer level, because it has only 3 motors, one for CIS (Contact Image Sensor), one for ink x-axis motion, and final one for gear train and rollers.



首先上蓋的部分,沒有hinge,
上蓋直接扣到Scanner的flat bed的勾槽之中!

光是拆上蓋與外殼充滿了卡勾 (Hook)

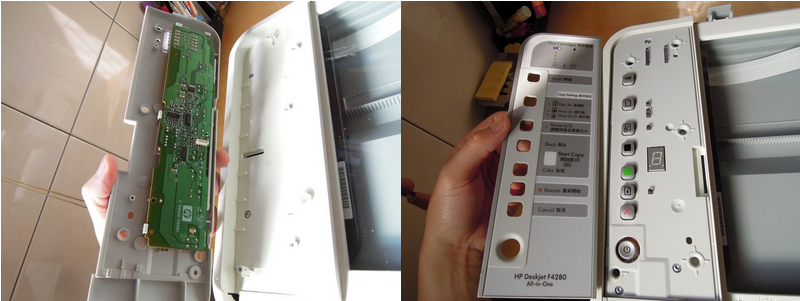

Control Panel: its cover and back ground PCB

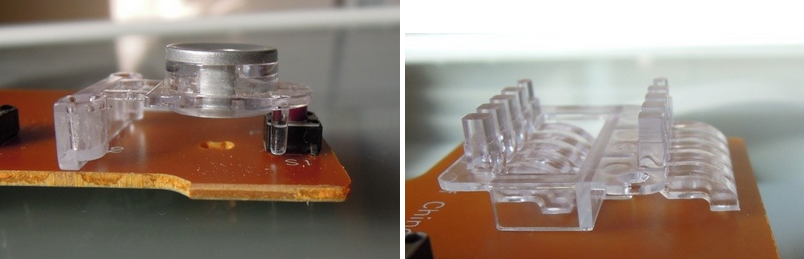

Plastic button + Press switch                    light guide for LED
Open Glass Window of Scanner.

The module of CIS Scanner
Detail picture of CIS module

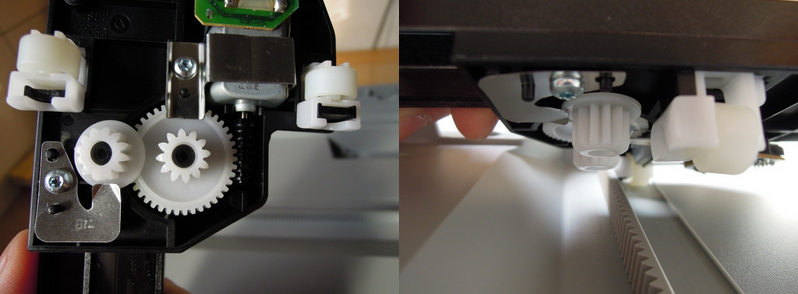

There is a smaller DC motor, which use worm gear, to drive module itself and move on rack.

next week....
tear down its engine!
